12K 200gsm 300Gsm UD CFRP Carbon Fibre Cloth Roll

Place of Origin: Shenzhen, China
Brand Name: Future
Material: 100% Carbon Fiber
Techniques: Woven
Width: 100~500mm
Weight: 200gsm, 300gsm
Pattern: UD
Supply Type: Make-to-Order


Product Description

Carbon fiber reinforced cloth is a unidirectional carbon fiber reinforced product, usually woven with 12K carbon fiber yarn. Two thicknesses are available: 0.111mm (200g) and 0.167mm (300g). Various widths: 100mm, 150mm, 200mm, 300mm, 500mm and other special widths required by projects. It is used for tensile, shear and seismic reinforcement of structural members.

This material is used together with the supporting impregnating glue to become a carbon fiber composite material, which can form a complete performance carbon fiber cloth sheet reinforcement system, which is suitable for dealing with increased building loads and engineering Use function changes, material aging, concrete strength grade lower than design value, structural crack treatment, severe environment service component repair, protection reinforcement project.

Type

Grade

Tensile Strength(Mpa)

Tensile Modulus(Gpa)

Elongation(%)

Thickness(mm)

Weight(g/㎡)

H12K-CF200

I

≥3500

≥240

≥1.7

0.111

200

II

≥3200

≥210

≥1.5

0.111

200

H12K-CF300

I

≥3500

≥240

≥1.7

0.167

300

II

≥3200

≥210

≥1.5

0.167

300

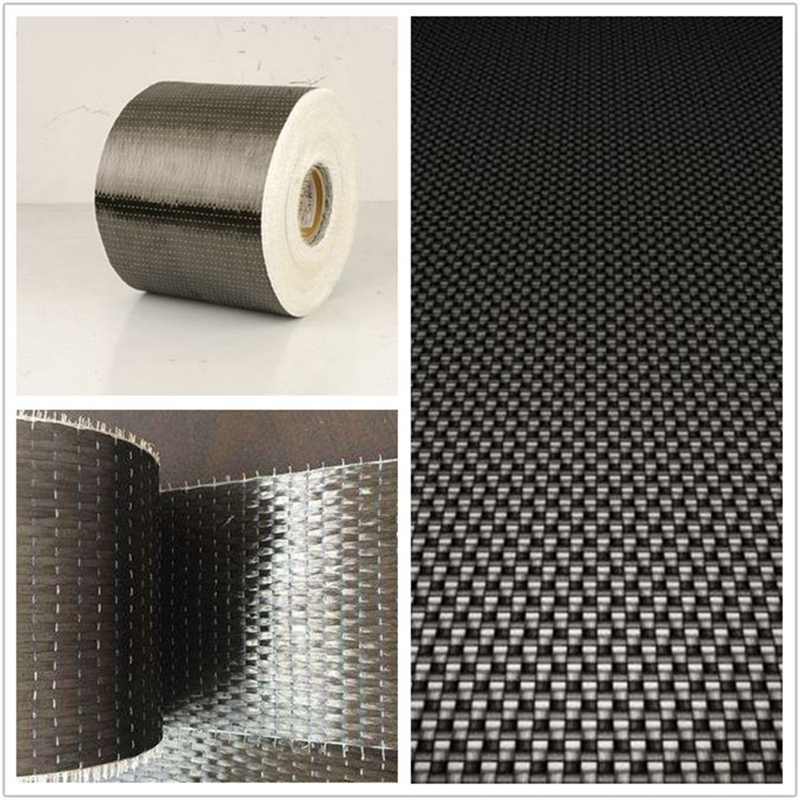

5.5.3 12k 200gsm 300gsm UD CFRP carbon fibre cloth roll-详情-1

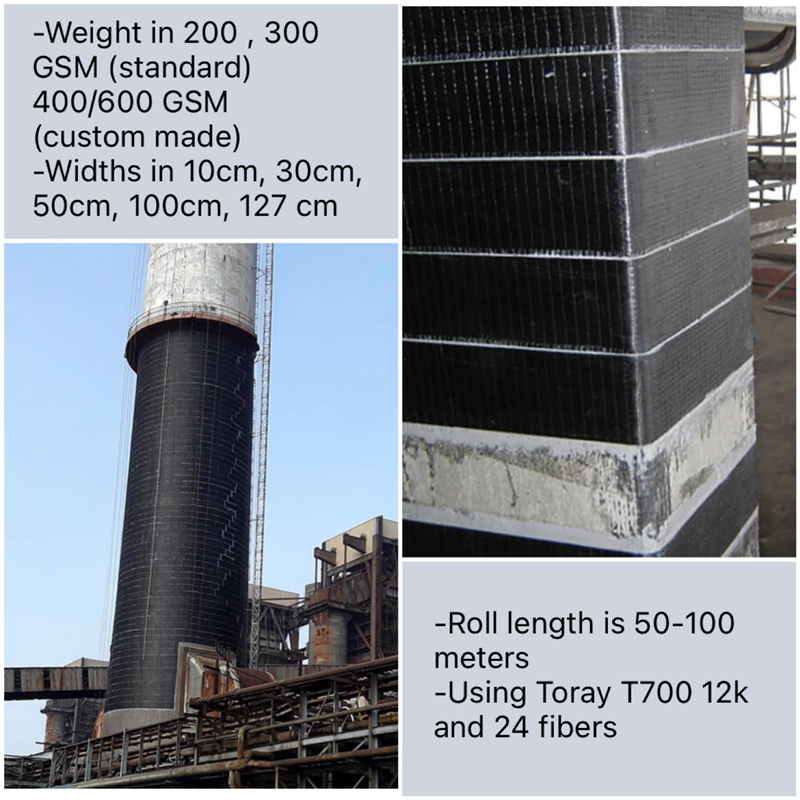

Application of UD CFRP reinforcement fabric:

5.5.3 12k 200gsm 300gsm UD CFRP carbon fibre cloth roll-详情-2

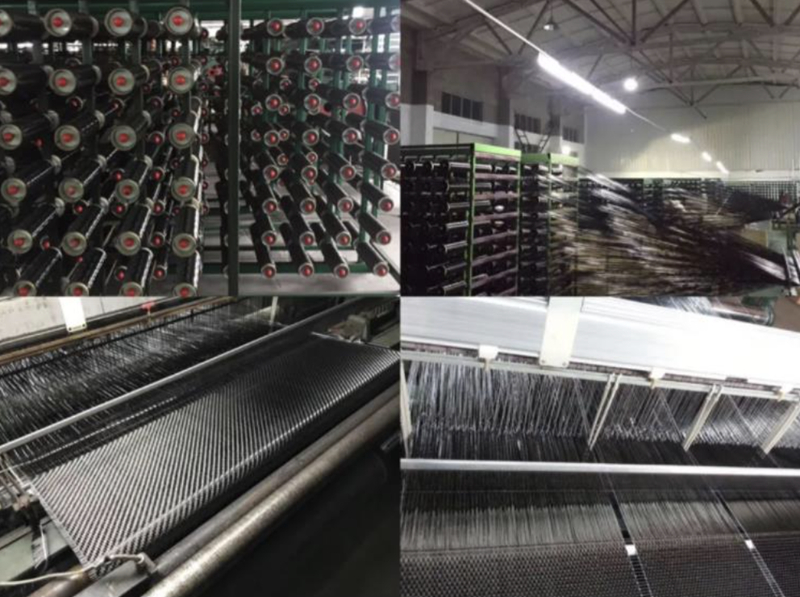

Our workshop:

5.5.3 12k 200gsm 300gsm UD CFRP carbon fibre cloth roll-详情-3

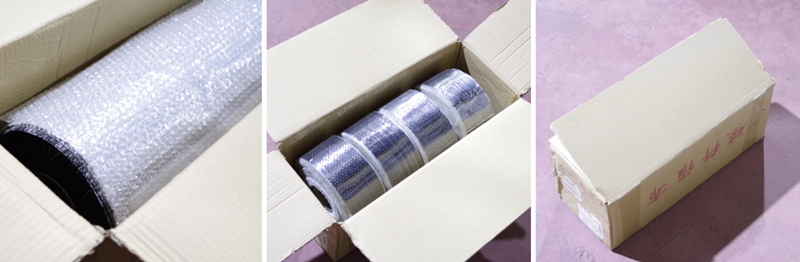

Packing details:
5.5.3 12k 200gsm 300gsm UD CFRP carbon fibre cloth roll-详情-4
