All the spread tow fabrics produced by Future composites are made of imported Toray T70012K carbon fiber tow materials. They are made of plain weave or twill weave. The warp and weft yarns are woven up and down or bi-axial up and down. With firm texture, flat surface and clear texture, make the great 3D outlook, at the same time by the excellent high strength, high modulus, it is very suitable for the production of carbon fiber interior and exterior car parts.
Overall information:
| Fiber type | Weave | Fiber count | Weight | Thickness | Width |
| 12K | Plain | 5×5 | 80 | 0.08mm | 1000 |
| 12K | Plain | 6.25×6.25 | 100 | 0.10mm | 1000 |
| 12K | Plain | 10×10 | 160 | 0.16mm | 1000 |
| 12K | Plain | 12.5×12.5 | 200 | 0.20mm | 1000 |
Mechanical properties:
| Iterm | Specification | |||
| Weight | g/㎡ | 80±2 | 100±2 | 200±3 |
| Meridional fracture capacity | N/50mm | ≥2400 | ≥3300 | ≥5900 |
| Zonal fracture capacity | N/50mm | ≥2400 | ≥3300 | ≥5900 |

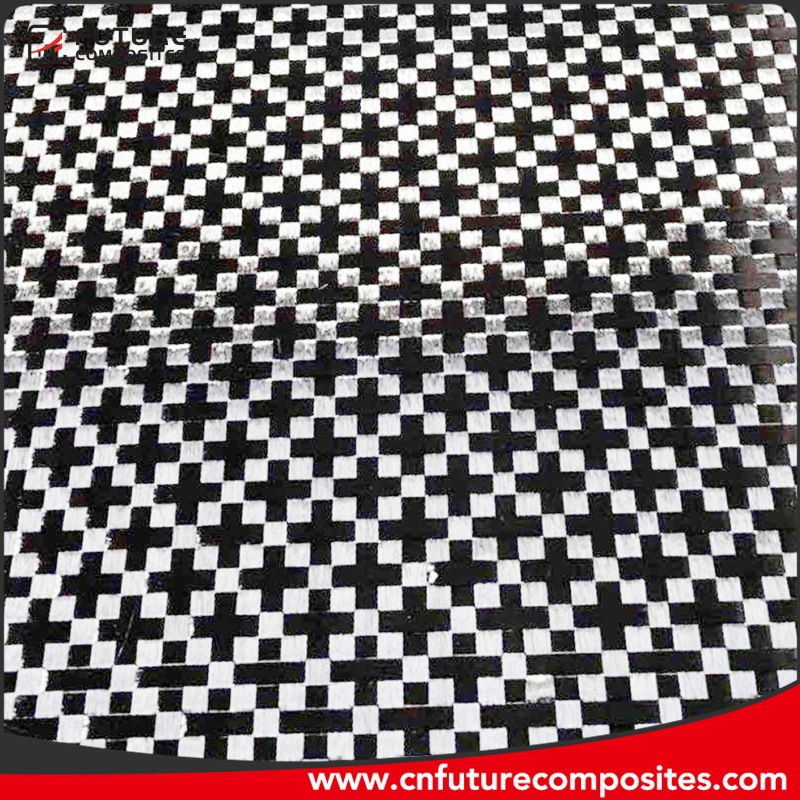

Detailed photo of 3D spread tow carbon cloth:

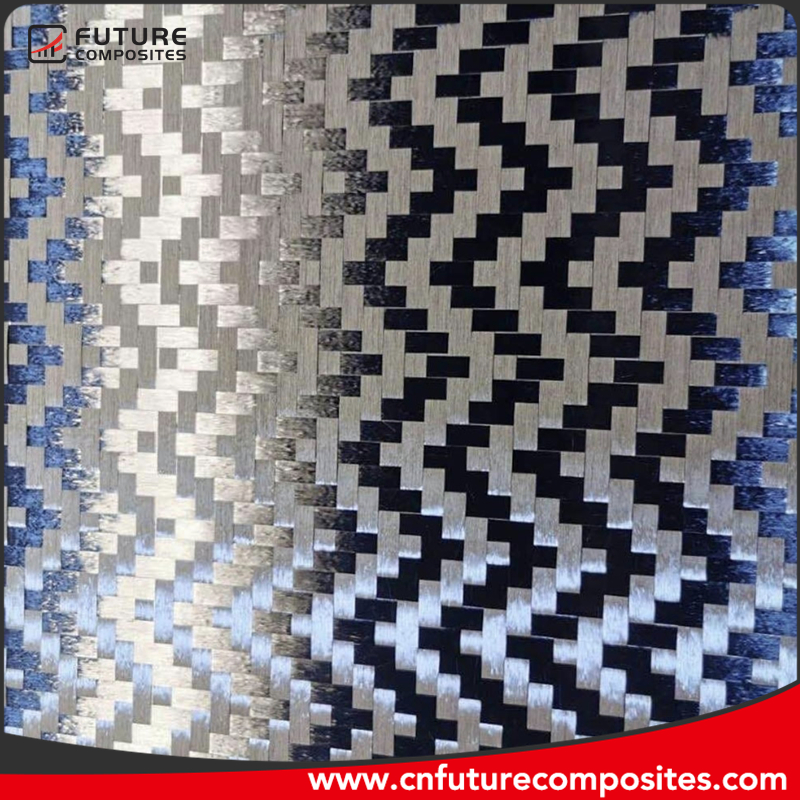

Other tri-axial patterns made by Future:
The outlook of suitcase and car parts by tri-axial spread tow design:
Shipping & packing:
